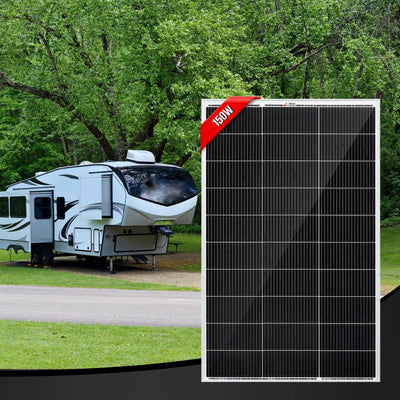

Panel solar Rich Solar de 150 vatios y 12 V | Garantía de salida de 25 años | Certificación UL
SKU: RS-M150
10% OFF
Final Price: $137.70
SALE10
Copy Code
Product Description
Technical Aspects
Shipping
FAQ
Warranty
Download Brochure
Product Description

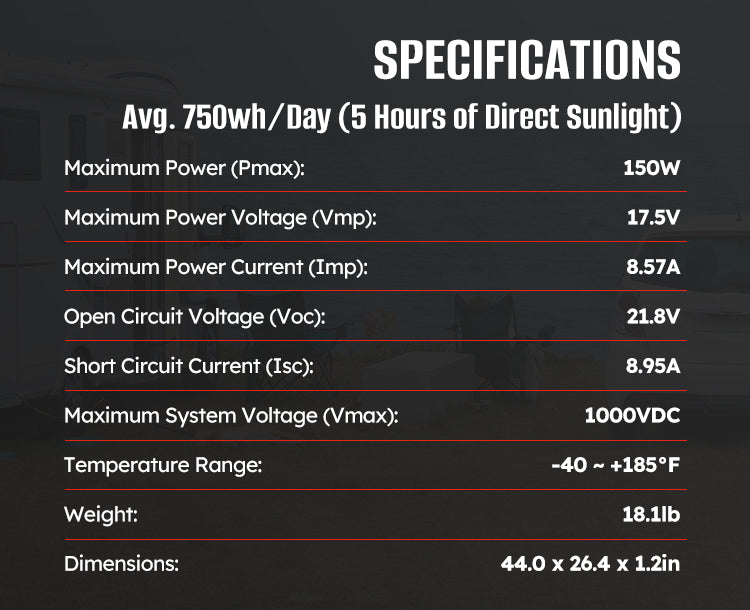

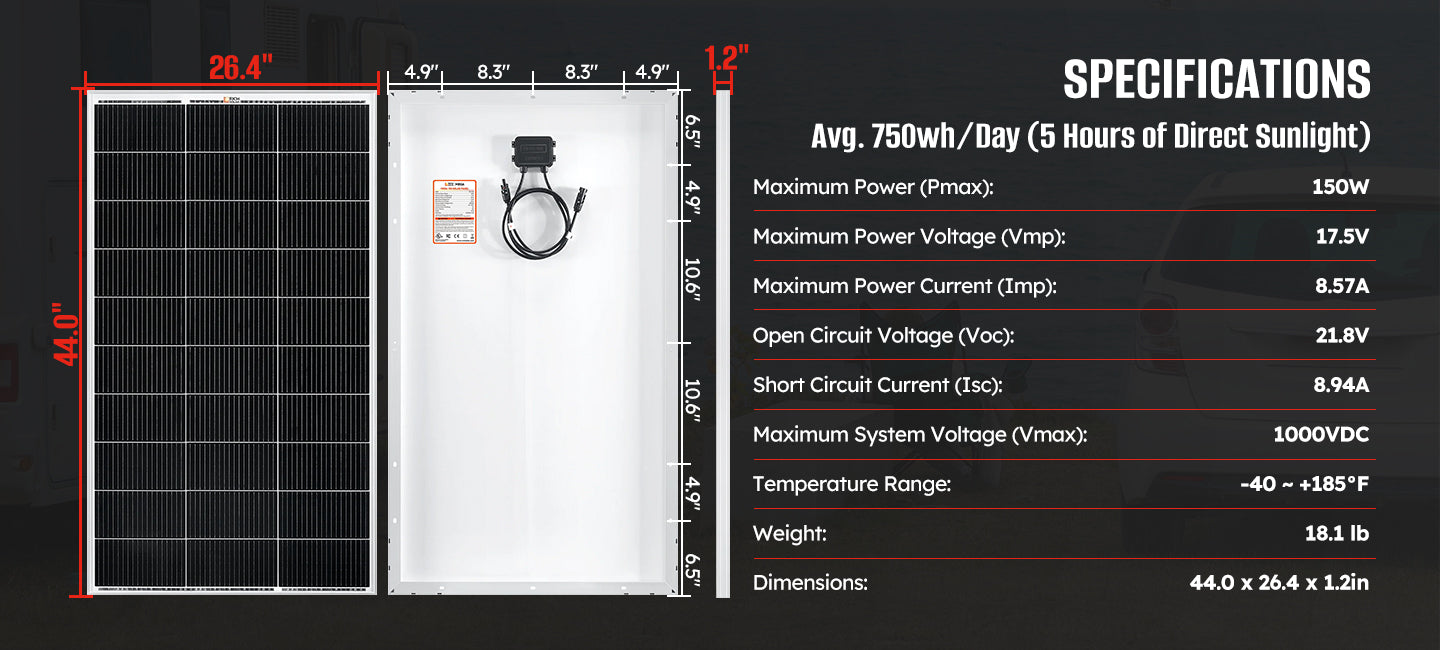

Technical Aspects
| Model | RS-M150 |
| Maximum Power( Pmax) | 150W |
| Maximum Power Voltage (Vmp) | 19.5V |
| Maximum Power Current (Imp) | 7.69A |
| Open Circuit Voltage (Voc) | 23.6V |
| Short Circuit Current (Isc) | 8.06A |
| Maximum System Voltage(Vmax) | 1000VDC |
| Temperature Range | -40°F ~ +185°F |
| Weight | 18.0 lbs |

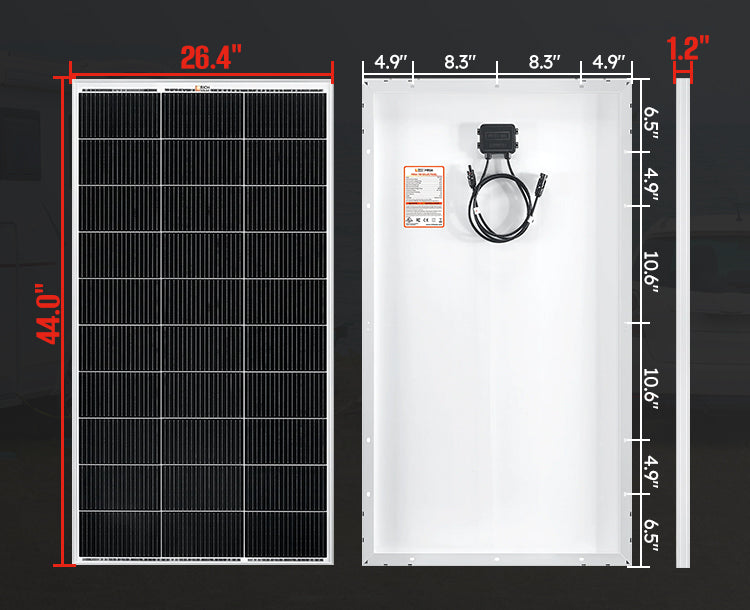

| Dimensions | 42.5 x 27.6 x 1.2 in |

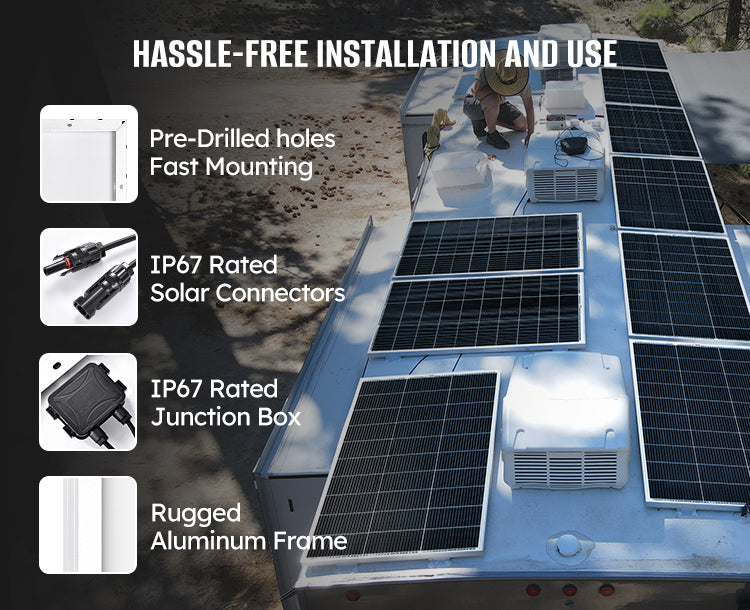

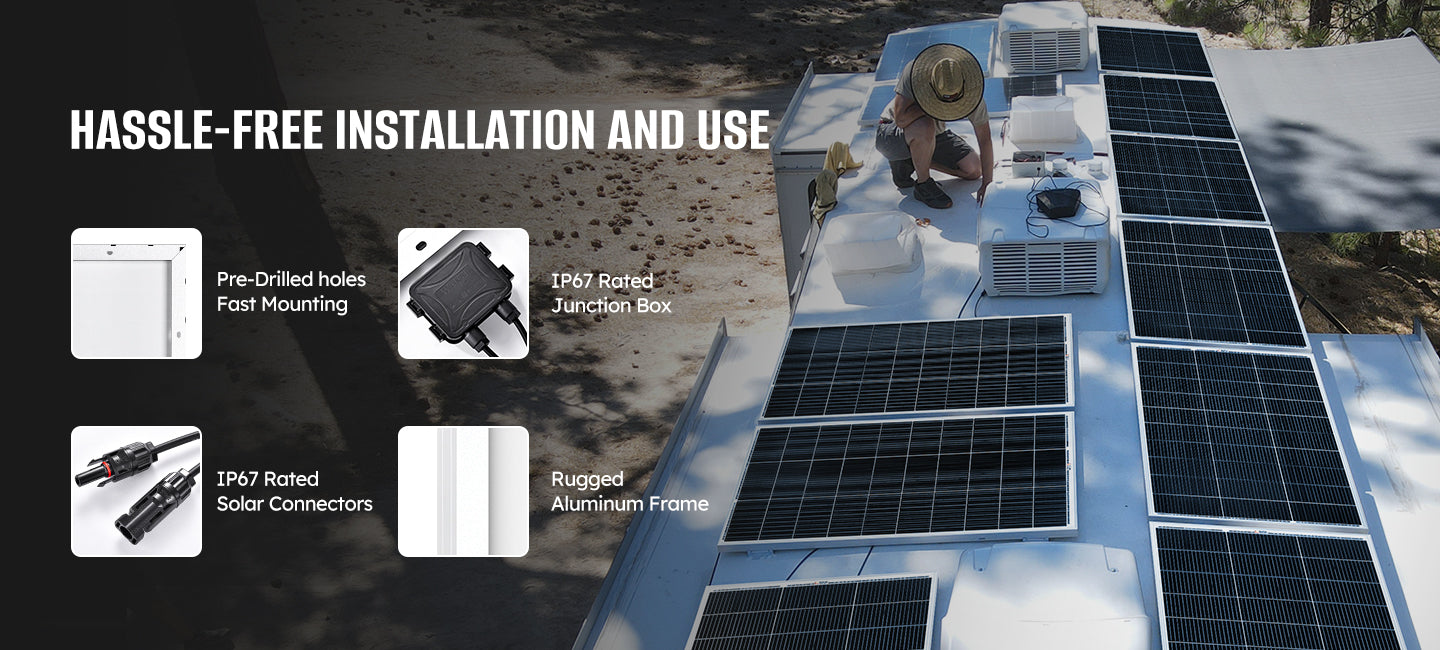

| Built-in Components | 3 feet each; IP67-rated waterproof junction box; IP67-rated waterproof solar connectors; Bypass diodes built into the junction box |
Model: RS-M150
Maximum Power( Pmax): 150W
Maximum Power Voltage (Vmp): 19.5V
Maximum Power Current (Imp): 7.69A
Open Circuit Voltage (Voc): 23.6V
Short Circuit Current (Isc): 8.06A
Maximum System Voltage(Vmax): 1000VDC
Temperature Range: -40°F ~ +185°F
Weight: 18.0 lbs
Dimensions: 42.5 x 27.6 x 1.2 in
Built-in Components: 3 feet each; IP67-rated waterproof junction box; IP67-rated waterproof solar connectors; Bypass diodes built into the junction box
Shipping
FAQ
How soon can I expect the delivery?
You will receive the package within 3 to 5 business days after placing the order.
How do l register my product and activate my warranty?
Your warranty is activated the moment you make a purchase.
Can l run my TV, refrigerator, or water pump on solar?
Any of your appliances can adequately run on solar power. However, you may need other components to transfer the power generated from a solar panel successfully.Most common home appliances run on AC power, such as a TV. As such, you will need an inverter to properly transfer the power from AC to DC. Off-grid refrigerators like those used in RVs can run on either DC or AC. Depending on the specific type, you may need an inverter. Water pumps can also run on solar power, but be sure to read the manual to check to see if an inverter is needed.
Do l need to install an inverter if l only want to charge my boat or Ry battery with a solar panel?
You don’t need an inverter if you’re only charging your battery. However, if you want to use the battery to run different appliances, like a TV or a refrigerator, you need an inverter to convert the DC power to AC power.
Will solar panels work in the winter in my state or province?
Wherever there is sunlight, solar panels will generate electricity. Cooler conditions, like those during the winter, can help improve solar panel performance. Solar panels can still generate electricity in cloudy conditions, just not as efficiently. The panel won't generate any electricity if there is any snow build-up on it, so make sure to keep the panel clear. This goes for any type of obstruction including shade or dirt.
Does my solar panel system require roof penetration?
Solar panels don’t always need a roof penetration for installation. Most times, they can be permanently mounted on the roof using a sealant. Alternatively, they can be installed on the ground.
Can the solar panel drain my battery at night?
If you have a solar charge controller installed in your system, there is no danger of a reverse current draining your battery.
Can the solar module overcharge my battery?
Yes, but only if it’s used without the charge controller, which is why it’s important to always use one when you have a battery.
Can l run my 110V appliances with my solar power system?
Yes, you can run your 110V appliances with your solar power system using an inverter. The inverter connects your solar panel to your battery, converting the DC energy into AC energy, and allowing you to power your appliances.
Do l have to disconnect the panels from the battery when l drive my RV or while l am recharging my battery by other means?
The solar panels are designed to permanently connect to your battery, so you don’t need to ever disconnect them when driving your RV or charging your battery from other sources.
What is the difference between monocrystalline and polycrystalline?
Monocrystalline solar panels use a single silicon crystal during production whereas polycrystalline uses multiple fragmented silicon crystals. Monocrystalline panels are more expensive but are more efficient. They also appear black and use less space. Polycrystalline panels are less expensive but are less efficent. They appear blue and require a little more space. The size difference doesn’t take away from their energy output. A 100W monocrystalline panel will produce the same amount of energy as a 100W polycrystalline panel, but it will do so using less space than the polycrystalline.
How long will the solar panels last?
The solar panels have a performance warranty of 25 years. After 5 years of use, the panels should output more than 95% of the rated power. After 10 years, that output is 90%, and after 25 years, the output should be 80%.
How much maintenance is required?
We recommend cleaning your panels either weekly or bi-weekly so you can continue to achieve high performance and optimal energy generation.
Warranty
Solar Panel
25-year output warranty; 10-year workmanship warranty
Download Brochure
Customer Reviews
Based on 12 reviews
100%
(12)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
These panels appear to be well made. I had four 80w panels that were quite old and had become degraded so adding four 15w panels probably doubles my practical output. Their price was good and with free shipping a deal. They shipped promptly. I’d recommend this company.
T
Very durable and the mc4 cable hook up made it easy great plug and play.
S
I needed to upgrade my solar system at our remote cabin. These 2 150W panels, wired in Series, provide all the juice needed to keep our 600ah battery bank very satisfied. Wiring was easy. Thank you, Rich Solar, for the product advice. I am quite satisfied.
M
The Mega150 panels were the right size while giving more output than other options. Customer support has been excellent. Perfect size for rv and van.
J
The panels in full sun are producing almost 12 amps of power. On an overcast day they still produce .2-.5 amps of power! Would recommend for product performance and customer service. One panel came damaged and they sent a replacement immediately so I had it before my camping trip.
