RICH SOLAR | 200 Watt 24 Volt Off-grid Solar Panel | 25-Year Output Warranty | UL Certified

SKU: RS-M200D

Product form

$249.99$224.99

10% OFF

Final Price: $202.50

SALE10

Copy Code

  • 9-busbar solar cells
  • Lightweight anodized aluminum frame
  • Plug-and-play junction box
  • High-transmission, AR-coated tempered glass
  • Industry-standard quick-connect cables for series or parallel use
  • Performs well in low light (cloudy days, mornings, evenings)
  • Highly reliable with over 30 quality tests, PID-resistant, double EL inspected
  • Certified to handle tough conditions (2400 Pa wind, 5400 Pa snow, 35 mm hail at 97 km/h)

    • Free Returns

    Features

    • 9 busbar solar cell configuration
    • Lightweight anodized aluminum frame
    • Plug and play junction box
    • High transmission, AR (anti-reflective) coated tempered glass
    • Industry standard quick connect cables (Solar Connectors) work in series or in parallel
    • Excellent low light performance on cloudy days, mornings and evenings
    • Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
    • Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)

    Installation

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)

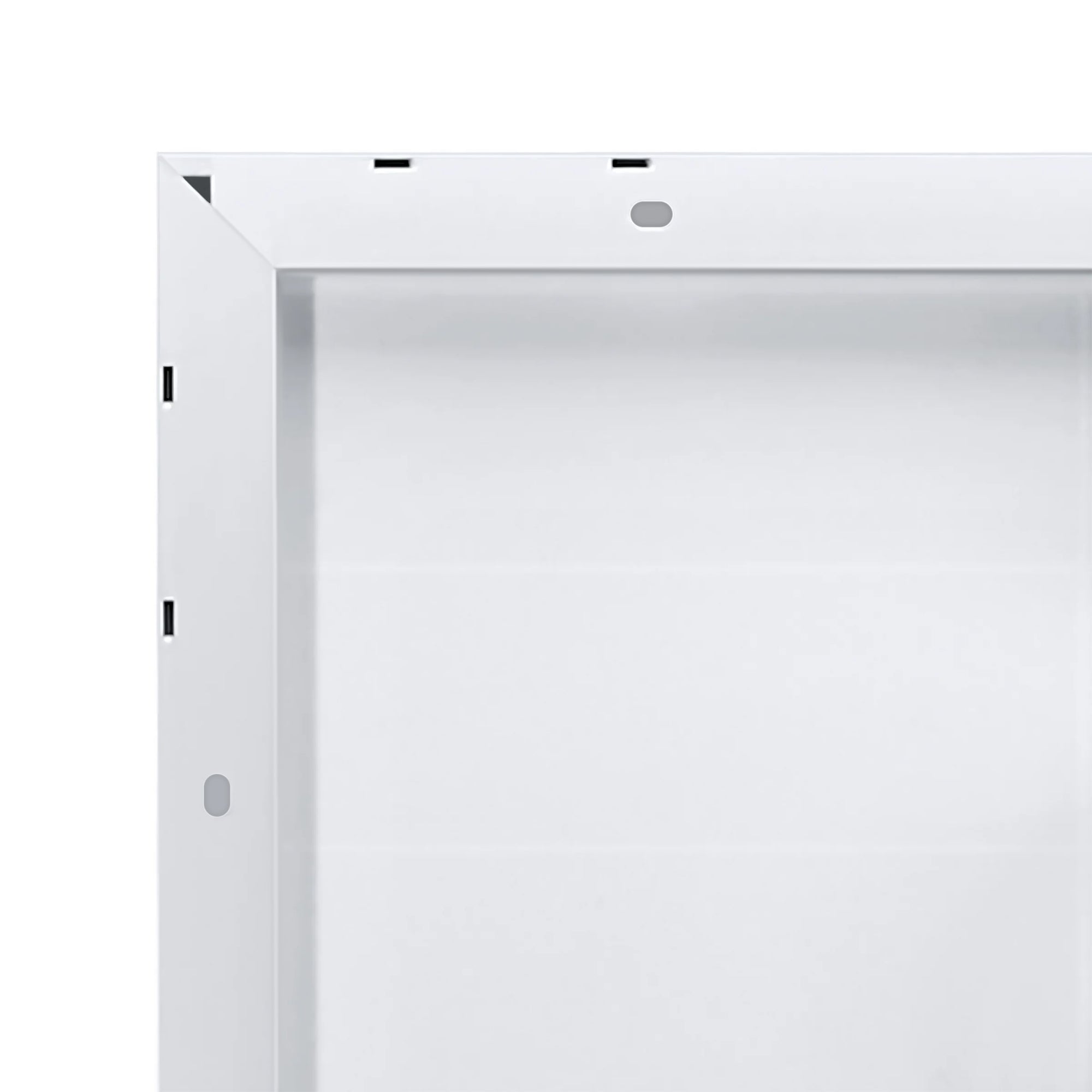

    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty

    • 25 years warranty limited output power * (Please refer to product warranty for details)

    Specifications

    • Maximum Power(Pmax): 200W
    • Maximum Power Voltage(Vmp: 37.6V
    • Maximum Power Current(Imp): 5.32A
    • Open Circuit Voltage(Voc): 45.4V
    • Short Circuit Current(Isc): 5.83A
    • Maximum System Voltage(Vmax): 1000VDC
    • Temperature Range: -40°F~+185°F
    • Max Series Fuse Rating: 15A
    • Weight: 26.5 lbs

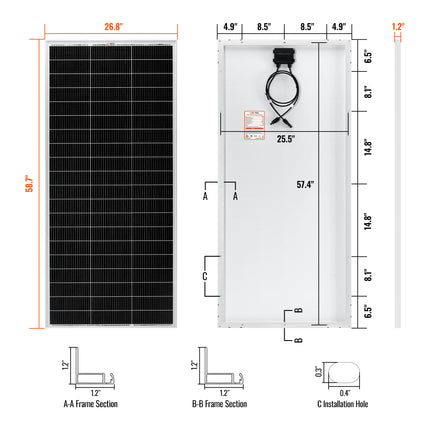

    • Dimensions: 58.7 x 26.8 x 1.4 in

    Built-in Components

    • 200 watt solar panel
    • Panel leads (pair): 3 feet each
    • IP65-rated waterproof junction box
    • IP67-rated waterproof solar connectors
    • Bypass diodes built into the junction box
    Download
