The 400 Watt Complete Kit Includes:

• 4 X 100W Solar Panel
• 1 X 40A MPPT Solar Charge Controller
• 2 X 100Ah LiFePO4 Battery  SE-B100
• 1 X 2000W 12V Pure Sine Wave Inverter
• 1 X BT Bluetooth Module
• 4 X Z Bracket Set
• 3 X Solar Y Branch Connector MMF
• 1 X 20FT 10AWG Solar Panel to Charge Controller Adaptor Kit
• 1 X 10FT 8AWG Battery to Charge Controller Tray Cables
• 2 X 1.5FT 2AWG Copper Battery Interconnect Cable for 5/16 in Lugs
• 1 X 2FT 6AWG ANL Fuse Cable with Double Ring Terminals for 5/16 in Lugs
• 1 X 40A ANL Fuse Set w/ Fuse
• 1 X 30A Solar Connector Waterproof in-line Fuse Holder w/ Fuse
• 2 X 3FT 2/0 Gauge Battery Inverter Cables

4 x 100W Solar Panel

• Maximum Power(Pmax): 100W
• Maximum Power Voltage(Vmp): 18.6V
• Maximum Power Current(Imp): 5.38A
• Open Circuit Voltage(Voc): 22.8V
• Short Circuit Current(Isc): 5.78A
• Maximum System Voltage(Vmax): 1000VDC
• Weight: 15 lb
• Dimensions: 39.0 x 21.3 x 1.2 inches

1 x 40A MPPT Solar Charge Controller

• Rated Battery Current: 40A
• Rated Load Current:  20A
• Max. PV Input Short Current:  50A
• Max. Battery Voltage:  32V
• Max Solar Input Voltage:  100VDC
• Charge circuit voltage drop: = 0.26V
• Discharge Circuit Voltage drop: = 0.15V
• Working Temperature: -31℉ to 113℉
• Max Terminal Size: 8AWG
• Rated Load Current:  10% to 90% NC
• Overall Dimension:  9.37 x 6.81 x 2.85 in
• Net Weight: 4.41 lb

2 x 100Ah LiFePO4 Battery with Heated

• Nominal voltage: 12.8V
• Nominal capacity: 100Ah
• Nominal energy：1280Wh
• Nominal charging voltage: 14.4V
• Maximum charging current: 100A
• Maximum discharge current: 100A
• Continuous discharge current: 100A
• Size：10.2 x 6.6 x 8.3 in
• Weight：24.3 lb

1 x 2000W 12V Pure Sine Wave Inverter

• Rated Voltage: 12V DC
• Continuous Power:  2000W
• Peak Surge:  4000W
• Waveform: Pure Sine Wave
• Input Voltage:  12V DC
• Output Voltage:  120V AC
• Output Frequency:  60 Hz
• Output Efficiency: ＞88%
• AC Output Sockets: 3
• USB Power Port: 5V / 2.1A
• Power Output Control: AC On/off Switch
• Operation Temperature:  14°F to 122°F
• Dimensions: 16.1 x 9.6 x 4.0 in
• Weight: 10.1 lb

1 x BT Bluetooth Module

• Input Voltage: 5V-12V
• Standby Power Consumption: 0.04W
• Operating Power Consumption: 0.05W
• Communication Range: ≤15m
• Serial Baud Rate: Fixed Baud Rate 9600bps
• Cable Length: 5.00 m (16.4 ft)
• Dimensions: 2.6 X 2.01 X 0.61 In
• Installation Dimensions: 57.5, φ3.2mm (2.26, φ0.13in)
• Protection Grade: IP67
• Weight: 120 g (4.2oz)

3 x Solar Y Branch Connector

• Rated Current: 30A
• Maximum Voltage: 1000VDC
• Waterproof: IP67
• Wire Range: 10AWG, 12AWG
• Insulation Material: PPO + PA
• Contact Material: Tinned Cooper
• Temperature Range: 14°F ~ 194°F
• Safety Class: II

1 x 20FT 10AWG Solar Panel to Charge Controller Adaptor Kit

• Length: 20 feet
• AWG: 10
• Rating Voltage: DC: 1.8KV / AC: 0.6~1KV
• Waterproof: IP65
• Fire Rated: IEC60332-1
• Insulation Material: TPE
• Contact Material: Tinned Copper
• Temperature Range: 14°F ~ 194°F

1 x 10FT 8AWG Battery to Charge Controller Tray Cables

• Length: 10 feet
• AWG: 8
• Rating Voltage: 600/1000V
• Temperature: -40°F to +185°F

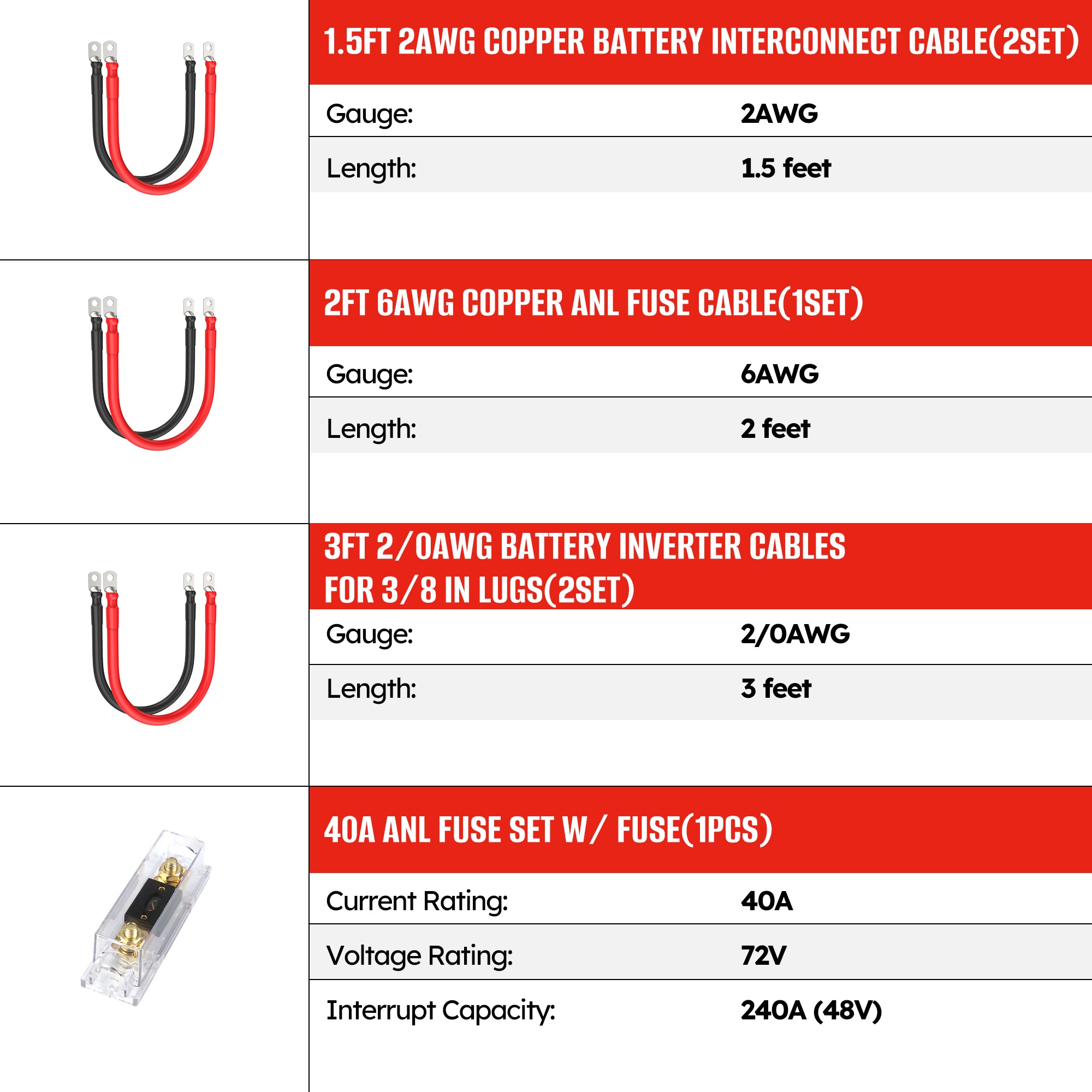

2 x 1.5FT 2AWG Copper Battery Interconnect Cable

• Length: 1.5 feet
• AWG: 2
• 100% Pure Copper
• Terminals: 5/16'' Both Ends

1x 2FT 6AWG Copper ANL Fuse Cable

• Length: 2 feet
• AWG: 6
• 100% Pure Copper
• Terminals: 5/16'' Both Ends

1 x 40A ANL Fuse Set w/ Fuse

• Current Rating:  40A
• Voltage Rating: 72V
• Interrupt Capacity: 240A (48V)

1x 30A Solar Connector Waterproof in-Line Fuse Holder w/ Fuse

• Rated Current: 30A
• Degree of Protection: IP2*/IP67
• Rated Voltage: 1000 V DC
• Flame Class: UL94-V0
• Test Voltage: 6000V (50Hz,1 min)
• Safety Class: II
• Overvoltage Category: CATIII
• Suitable Connector: Solar Connector
• Contact Resistance of Plug Connector: 1mΩ
• Insertion Force / Withdrawal Force: ≤50N / ≥50N
• Contact Material: Copper, Silver Plated
• Insulation Material: PPO

2 x 3FT 2/0AWG Battery Inverter Cables for 3/8 in Lugs

• Length: 3 feet
• AWG: 2/0
• 100% Pure Copper
• Terminals: 3/8'' Both Ends
