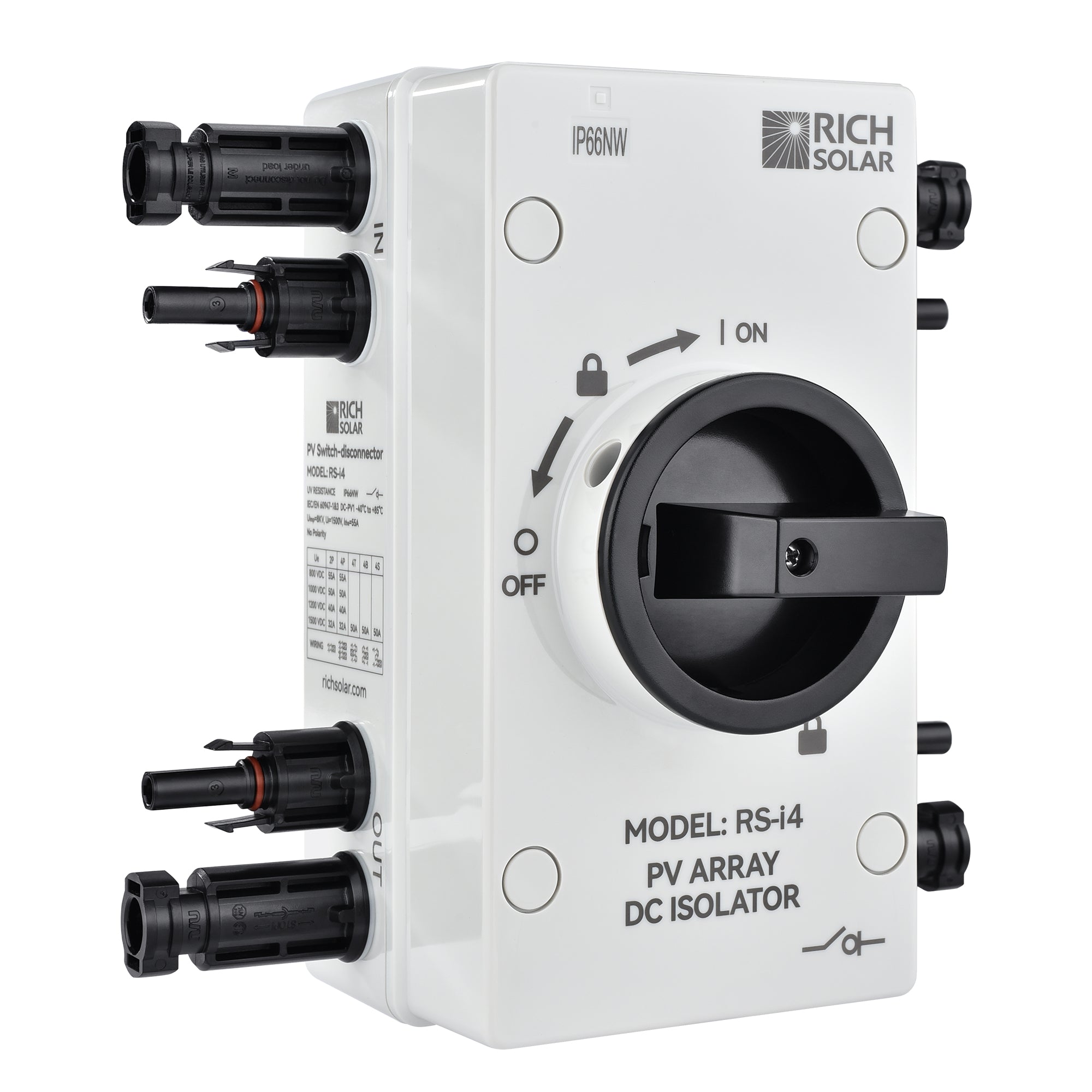

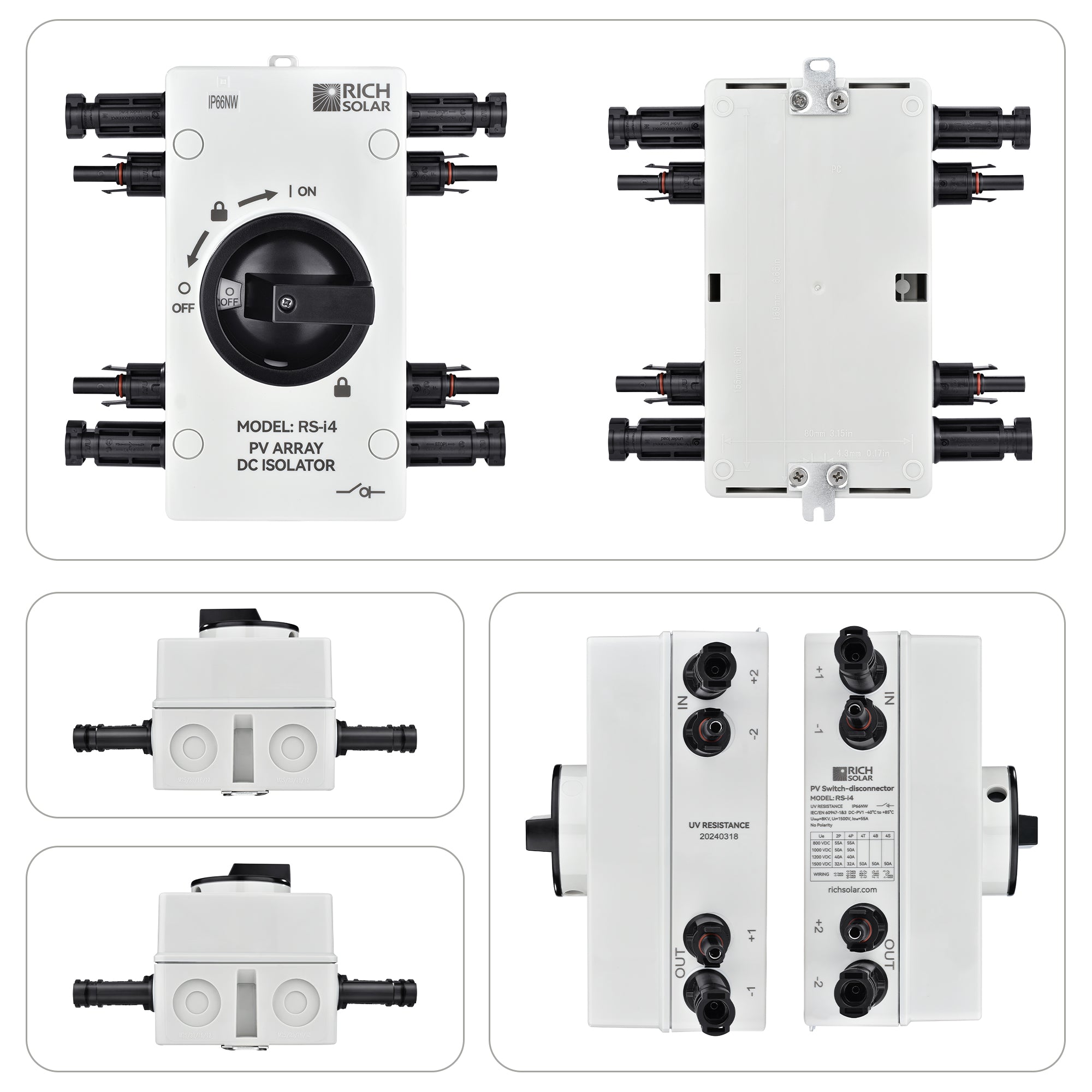

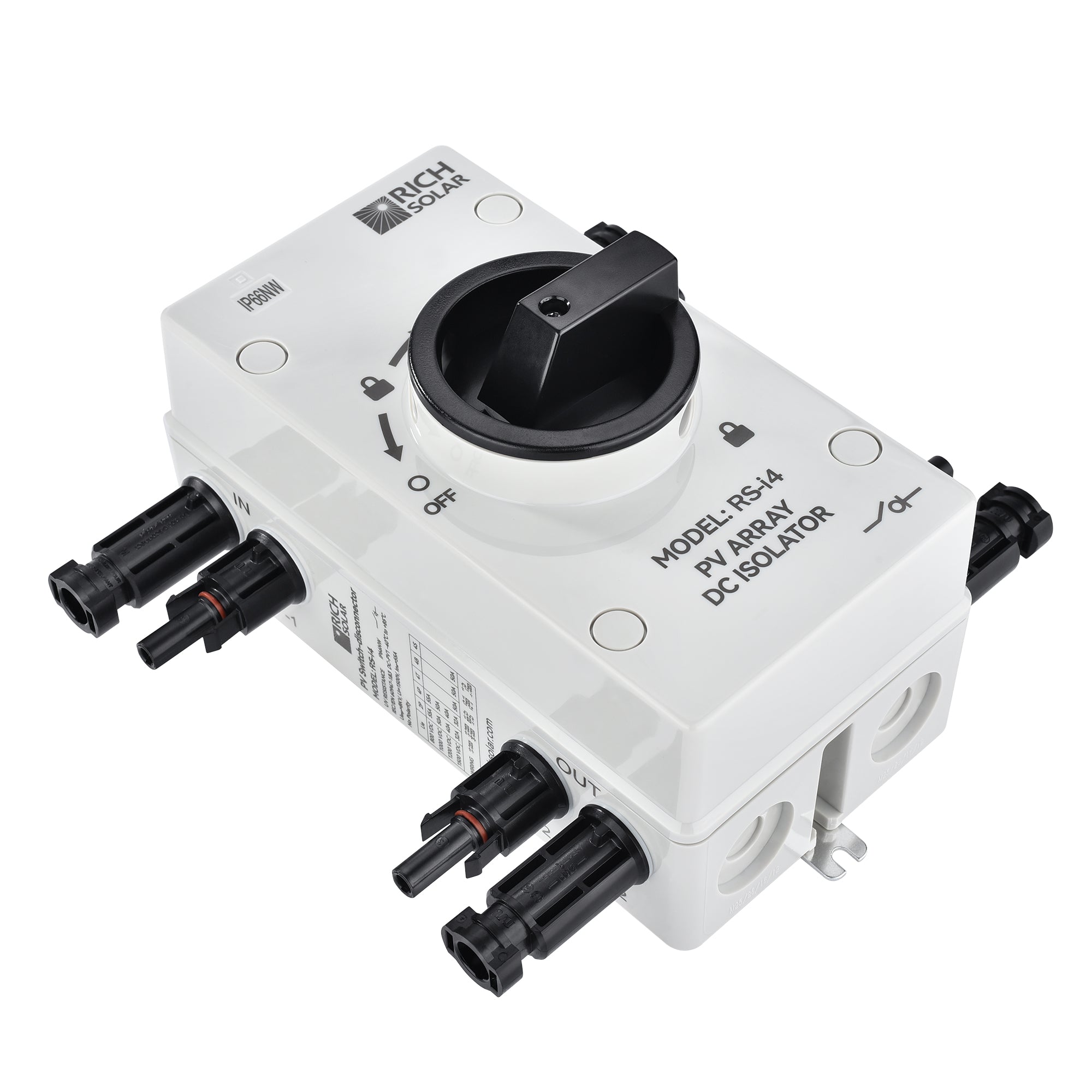

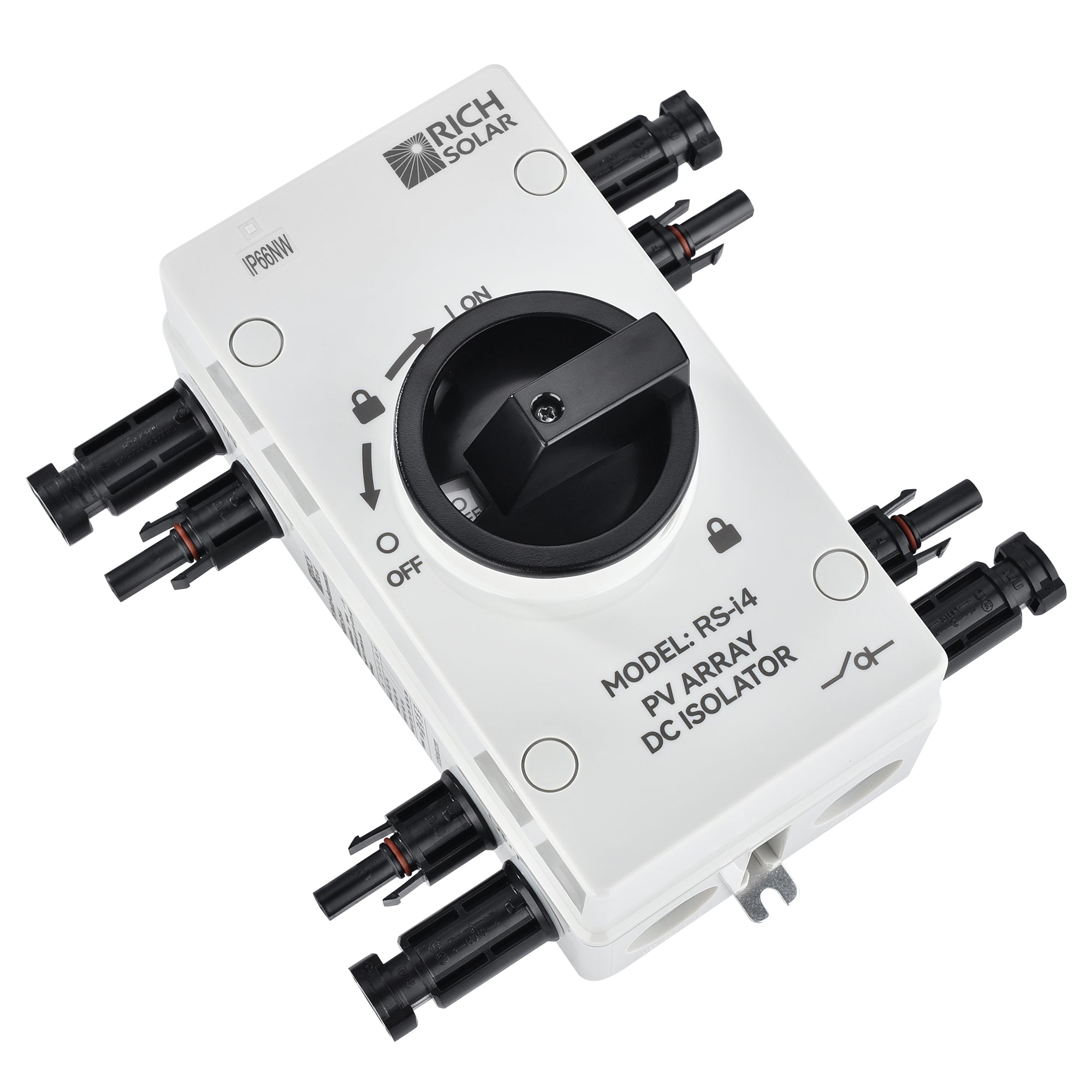

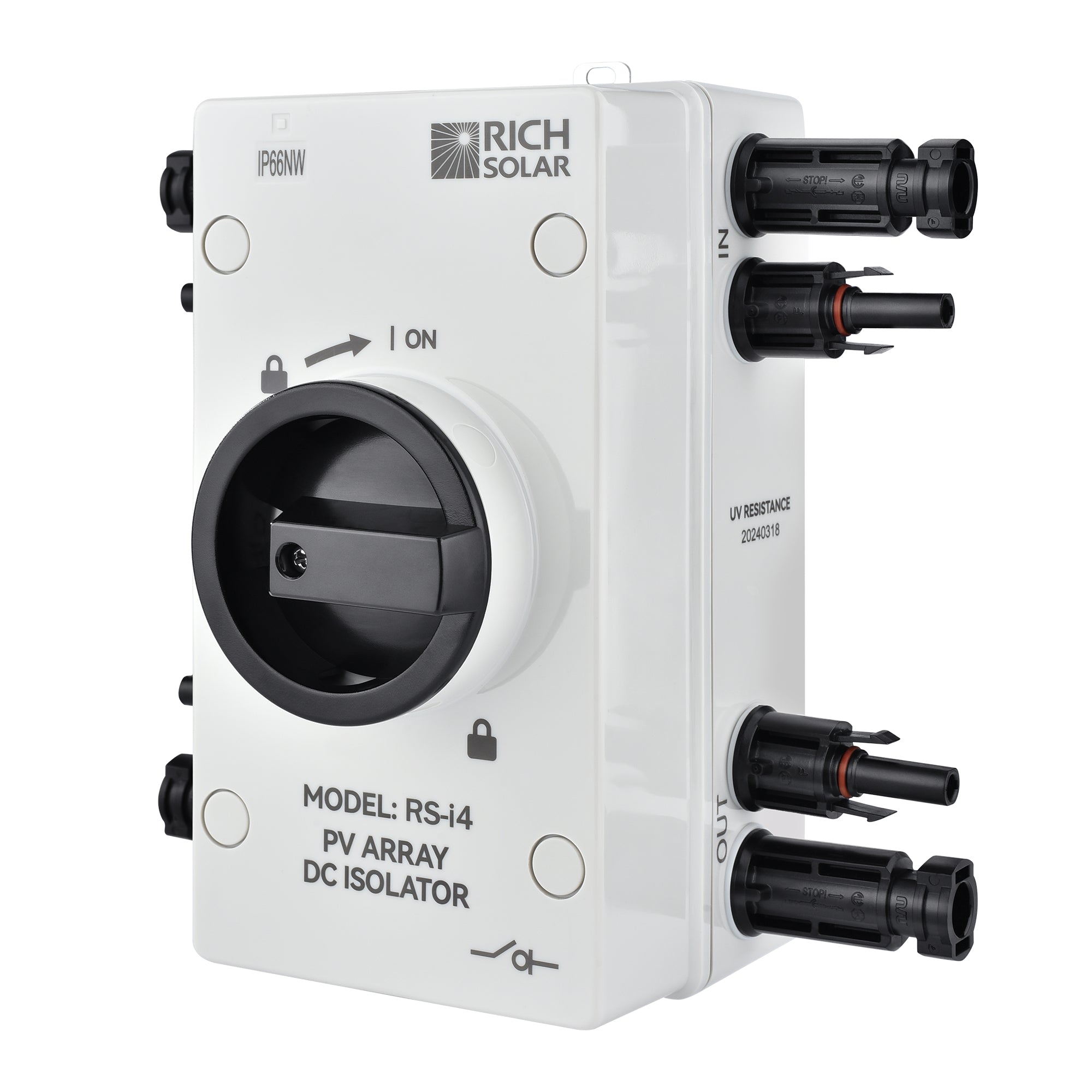

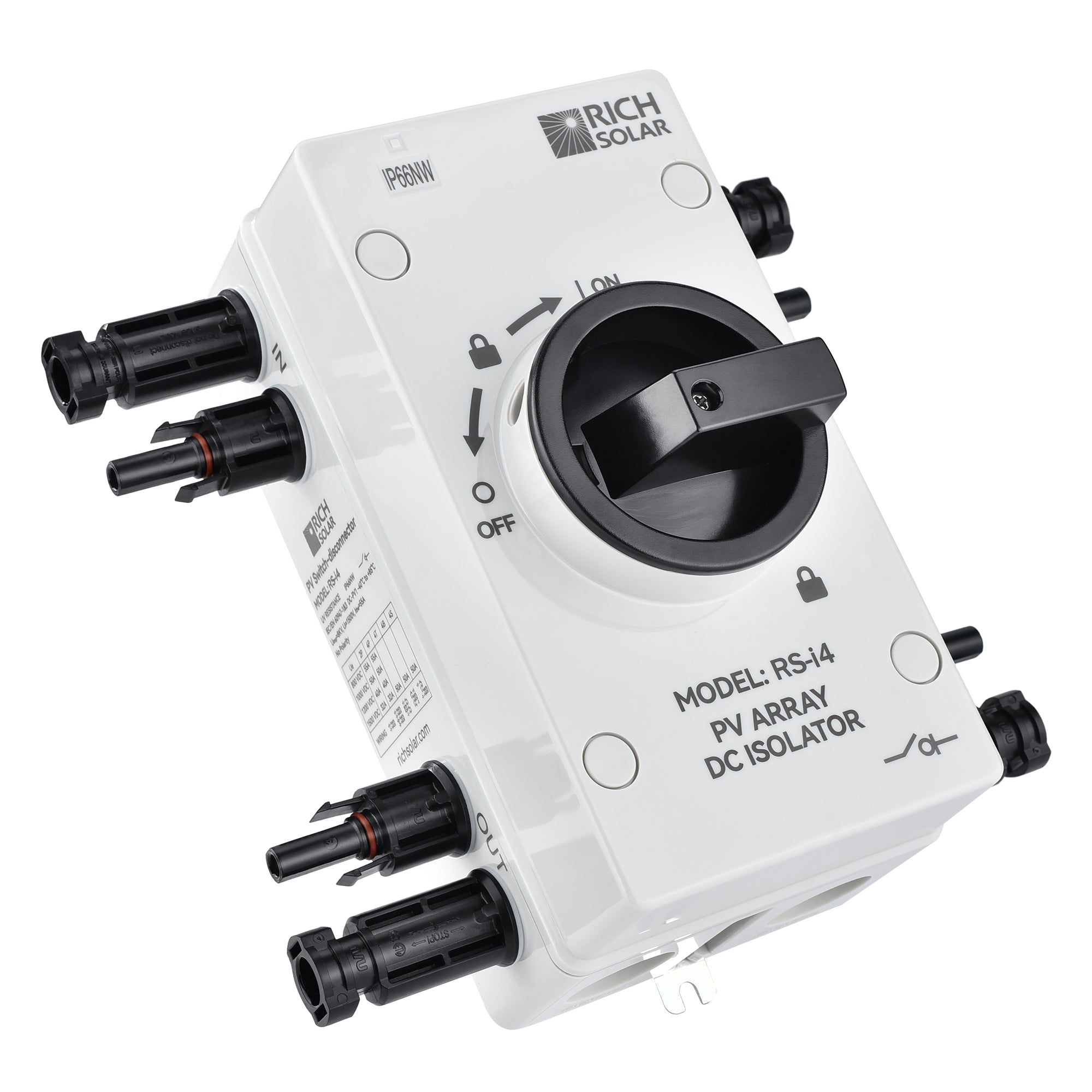

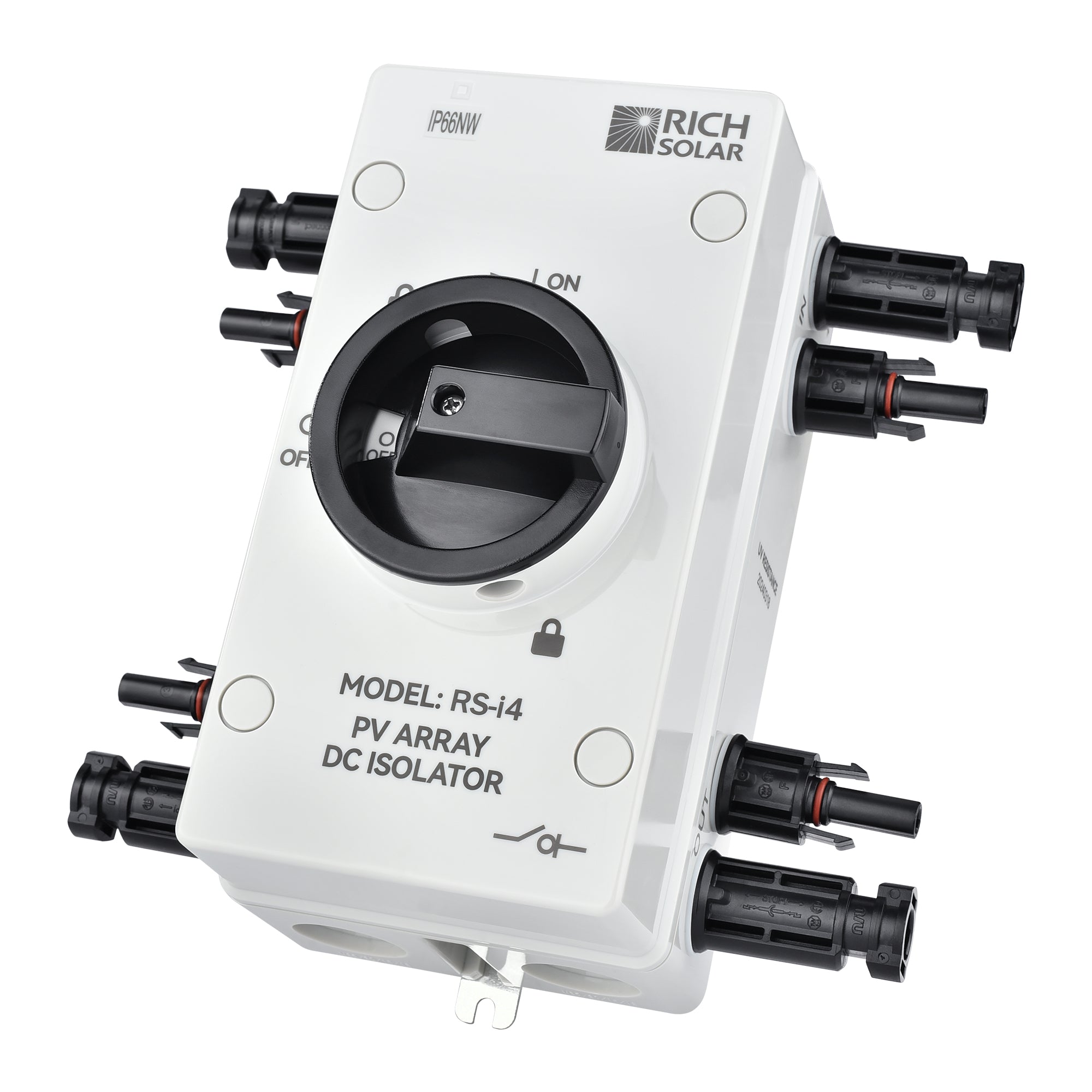

RICH SOLAR | Solar PV DC Quick Disconnect Switch | 1500 Volt 32 Amp | 4-Pole, 2-String Solar Array

SKU: RS-i4

Product form

$109.99


  • Quickly disconnect DC power from your solar system.
  • Outdoor-rated, for off/on-grid use.
  • SAFE-LOCK with 3 rotational positions for tamper resistance.
  • Single pull double throw 2 IO.
  • Disconnects load circuits and suppresses arcs in under 3 ms.
  • Lockout option.
  • Easy setup with simple output/input connections.

    • Free Returns
    12V 100Ah Heated LiFePO4 Battery for RVs
    12V 100Ah Heated LiFePO4 Battery for RVs 12V 100Ah Heated LiFePO4 Battery for RVs

    Size chart

    Description

    Specs

    FAQ

    Reviews

    Features

    • Quickly disconnect DC power from your solar array to the charge controller, batteries and/or inverters.
    • Outdoor rated.
    • Off and on-grid applications.
    • Isolated SAFE-LOCK with three rotational positions, reducing the risk of tampering.
    • Single pull double throw 2 IO.
    • Ensures the disconnection of load circuits and suppression of the arc in under 3 mil secs.
    • Lockout option.
    • Output and input connections are built for easy setup and installation

    Specifications

    • Maximum Rated Current: 32A
    • Maximum Rated Voltage: 1500V
    • Circuit Configuration: 4-pole and 2-string
    • Certifications: TUV, SAA, CE, IP certified, and ROHS compliant
    • Constructed with non-corrosive materials
    • Waterproof Rating: IP66NW
    • Arc Extinguishing Time: Less than 3ms
    • Operating Temperature Range: -40°F to +185°F (-40°C to +85°C)
    • Warranty: 10-year limited warranty
    • Dimensions (H x W x D): 7.1 x 6.8 x 4.3 inches / 179.5 x 173.9 x 110 mm
    • Net Weight: 1.7 lb / 0.77 kg
